1328 Wooden Legs 4 Axis CNC Router Machine Strong / Stable With 220v Power

Product Categories
Jinan Blue Elephant CNC Machinery Co., Ltd.
Contact Now

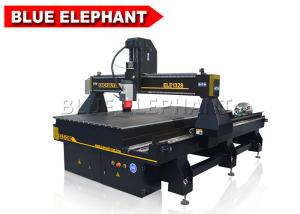

1328 Wooden Legs 4 Axis CNC Router Machine Strong / Stable With 220v Power

  • 1
  • 2

Brand Name : BLUE ELEPHANT

Model Number : ELE1328

Certification : CE, ISO, SGS, BV, TUV

Place of Origin : Jinan City, Shandong Province, China

MOQ : 1 set

Price : US $8,200 - 9,000 / Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 Set/Sets per Month

Delivery Time : 10-20 working days

Packaging Details : Standard marine export plywood case

Voltage : AC220V, 1PH, 60HZ (380v for optional)

Control system : Mach3 4 axis control system

Spindle : Italy HSD air cooling spindle

Drive motor : FL118 stepper motor and Yako 2811 driver

Table Surface : T-slot working table with PVC protection

Inverter : 7.5kw Fuling Inverter

Contact Now

1328 cnc wooden legs cutters machine , cnc router cutting machine with 220v power

Advantage of cutters machine:

  • 10~12mm thinkness heavy duty frame. More strong and stable.
  • Original Italy HSD air cooling spindle.
  • 300mm diameter rotary.

Features of cutters machine:

  • 1300*2830*300mm working size
  • 6Kw Italian HSD air-cooling spindle
  • 7.5kw DELTA inverter
  • T slot table
  • Taiwan HIWIN Square Rail for X, Y, Z axis #20
  • Stepper motor FL118 YAKO2811 driver
  • Mach3 control system for 4 axis
  • 300mm diameter rotary device 2500mm working length
  • Artcam 2012 software
  • 10mm Heavy duty Body construction
  • 21 pieces router bits
  • Dust brush and frame on the machine
  • 220V, single phase, 60Hz

Parameters of cutters machine:

Description Parameter
X,Y,Z Working Area 1300x2830x300mm
X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
X,Y,Z Repositioning Accuracy ±0.03mm
Table Surface T-slot working table with pvc protection
Frame Welded Structure
X, Y Structure #20 HINWIN/ABBA linear guide, helical rack
Z Structure Hiwin/ABBA Rail Linear guide and Ball Screw
Spindle 6kw Italy HSD air cooling spindle
Spindle Speed 0-18000RPM
Drive Motors FL118 stepper motor and Yako 2811 big driver
Working Voltage AC220V, 60Hz, 1PH (Option: 380V)
Operating System Mach3 4 axis control system
Control box Inner box
Inverter 7.5kw Fuling inverter
Lubrication system Automatic lubrication system
Rotary device Diameters: 300mm ; Length: 2830mm
X,Y Resolution <0.01mm
Running Environment Temperature 0 - 45 Centigrade
Relative Humidity 30% - 75%
Optional Japan Omron limit switch

PS:All the working area and specifications can be customized according to your requests.

Applications of cutters machine:

  • Wood furniture industry:Wave plate,fine pattern,antique furniture,wooden door,screen,craft sash,composite gates,cupboard doors,interior doors,sofa legs,headboards and so on.
  • Advertising industry:Advertising indentification,sign making,acrylic engraving and cutting,crystal word making,blaster molding,and other advertising materials derivatives making.
  • Die industry:A sculpture of copper,aluminum,iron and other metal molds,as well as artificial marble,sand,plastic sheeting,PVC pipe,wooden planjs and other non-metallic mold.
  • Relief sculpture and 3D engraving
  • Stone,Cylindrical object

Product Details of cutters machine:

1328 Wooden Legs 4 Axis CNC Router Machine Strong / Stable With 220v Power

Just looking forward to service every customer, like you.
